DC24V CX3G-16M Industrial Control PLC 32K Step Program With High Speed Pulse
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Software | GXWORKS2 | DIMENSION | 77*99MM |
|---|---|---|---|
| SIZE | 85*90*36MM | Port | RS232,RS485 |
| I/O | DND/PNP | Step | 32K |
| Highlight | DIN Rail Industrial Control PLC,Industrial Control PLC 8AI 4AO,32K step program Industrial Control PLC |
||
Product Description

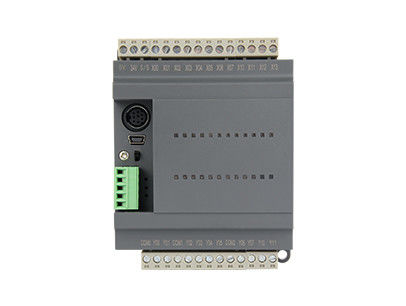

100%Original products CX3G-16M Industrial Control PLC with high speed pulse
PRODUCT DESCRIPTION:
At most 24DI/24DO (transistor output,or relay output or mixed output), 8AI/4AO (Optional)
Equipped with 2 PLC programming ports: Mini TypeB USB port (faster reading and downloading speed)
RS232 (8-hole mouse head female base) usually has 2 RS485 ports.
Support special encryption (Note: only 8-bit password encryption is supported)
32K step program capacity, 32K power fault holding register, support interruption, linear arc interpolation and PID automatic adjustment.
Network module can be selected according to customer requirements to realize remote control.
Packing:
- 1 peice PLC
- 1 set of programming cable
Power:
- DC24V

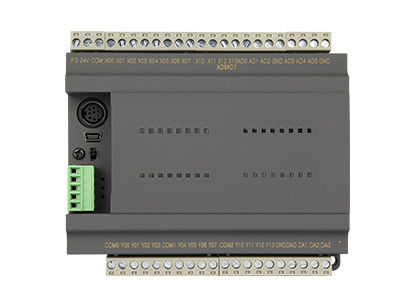

| Model | CX3G-16M | CX3G-24M | CX3G-32M | CX3G-48M | CX3G-34M | CX3G-64M | CX3G-80M |
| Dimension | 85*90*36mm | 130*90*36mm | 200*90*36mm | 290*90*36mm | |||
| Cutout size | 77*99mm | 122*99mm | 192*99mm | 282*99mm | |||
| Installation | Fixed hole installation and DIN-Rail (35mm ) | ||||||
| Features | Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register | ||||||
| I/O level |
Input: Passive NPN, public terminal isolated Transistor output: NPN Relay output: Normally open dry contact |
||||||
| Digital I/O | 8DI/8DO | 12DI/12DO | 16DI/16DO | 24DI/24DO | 18DI/16DO | 32DI/32DO | 40DI/40DO |
| DO type and load |
Relay(MR) or transistor(MT) or mixed(MRT) MOS tube: 2A/point, 4A/4 point COM; Transistor MT: 0.5A/point, 0.8A/4 point COM, 1.6A/8 point COM; MR: 2A/point, 4A/4 point COM, 5A/8 Click COM. (CX3G-16MRT: Default Y0, Y1 is transistor output, maximum 6 relay outputs) |
||||||
| High speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz | ||||||
| High speed pulse | 8 channels 10KHz | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz | |||||
| High-speed counting + high-speed pulse < 480KHz | |||||||
|
Analog I/O (optional) |
Null | 6AI/4AO | 2AI | 8AI/4AO | 12AI/8AO | 16AI/8AO | 4AI/4AO |
|
AI type (optional) |
Null |
Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0-20mA/ 4-20mA/ -5V~5V/ -10V~10V |
|||||
|
AO type (optional) |
Null |
0~10V/ 0-~5V/ 0~20mA/ 4~20mA -5~5V/ -10~10V (2DA for 1 minus voltage) |
|||||
| Default | 1 Mini type B USB programming port, 1 RS232 programming port (Interface terminal is mouse female port with 8 holes), 2 RS485 COM ports | ||||||
| Optional |
Default 2 RS485 COM ports can be customized as 1 RS485, 1 RS232 COM ports, or 1 RS485 COM port, 1 CAN (2.0A/B), or 1 RS232 COM port, 1 CAN (2.0A/B) CX3G-48M can add Ethernet port. |
Default 2 RS485 COM ports can be customized as 1 RS485, 1 RS232 COM ports, CAN (2.0A/B) port is optional CX3G-34M can add Ethernet port |
|||||
| Software | Compatible with GX WORKS 2 | ||||||
|
Suggested models: CX3G-16MT/MRT(-485/232) CX3G-24MT/MR/MRT(-6AD4DA -485/232) CX3G-32MT/MR/MRT(-2AD -485/232) CX3G-34MT/MR/MRT(-12AD8DA -485/232) CX3G-48MT/MR/MRT(-8AD4DA -485/232) CX3G-64MT/MR/MRT(-16AD8DA -485/232) CX3G-80MT/MR/MRT(-4AD4DA -485/232) Detailed info. refer to COOLMAY CX3G PLC Programming Manual CX3G PLC user manual |
|||||||
FAQ:
1) Are you a manufacturer or trade company?
We are manufacturer of PLC,HMI,HMI PLC combo and other industrial products for over 16 years, we have engineers for study & design
and workers for produce and operate etc, we could support you one-stop products and service.
2) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 3-8 working days after payment confirmed.
We are manufacturer of PLC,HMI,HMI PLC combo and other industrial products for over 16 years, we have engineers for study & design
and workers for produce and operate etc, we could support you one-stop products and service.
2) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 3-8 working days after payment confirmed.
