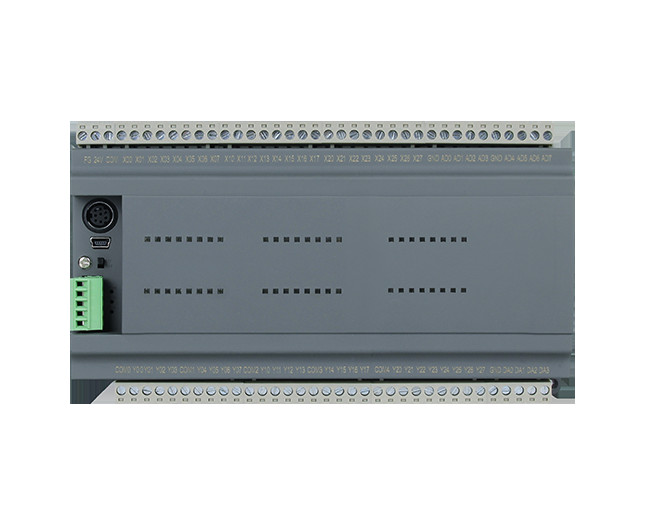

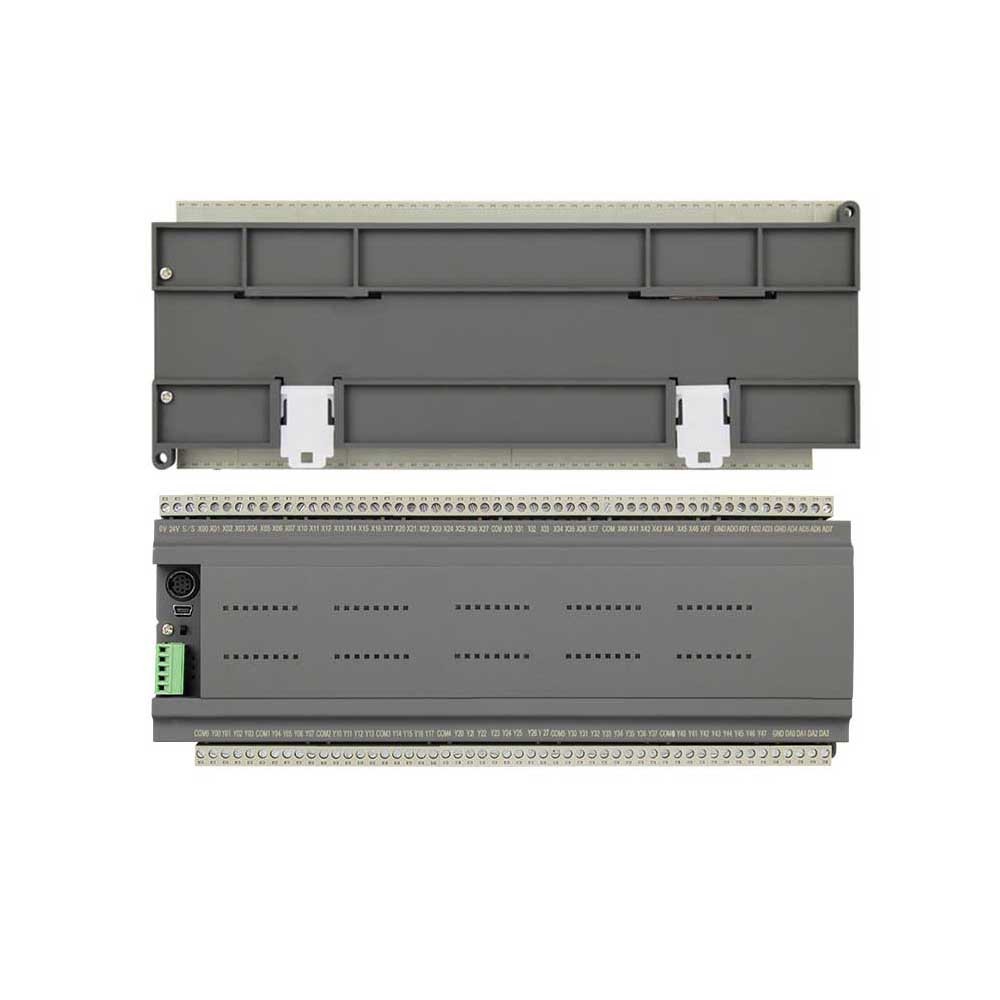

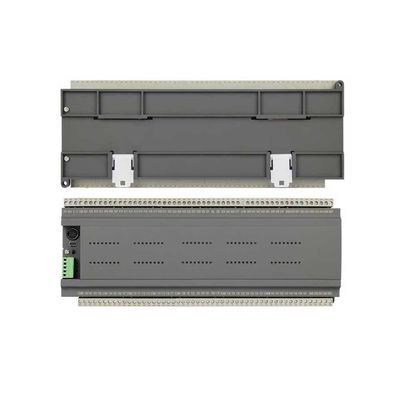

Coolmay CX3G-48M PLC Programmable Logic Controller 24DI 24DO Servo Motor Controller
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | Coolmay |
| Certification | CE |
| Model Number | CX3G-48M |
| Minimum Order Quantity | 1 Unit |
| Price | Details Need To Be Negotiated |
| Packaging Details | Carton |
| Delivery Time | 3-5 Days After Payment Confirmed |
| Payment Terms | TT,Paypal, Western Union, Credit Card |
| Supply Ability | 15000 Units Per Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cutout Size | 192*98mm | Digital I/O | 24DI 24DO |
|---|---|---|---|
| Analog(Optional) | Max 8AI/4AO | High Speed Pulse | Support 8-axis |
| High Speed Counting | Support 6-channel | Com Ports | 2*RS485, 1*232,1*mini Type B Port |
| Highlight | Coolmay PLC Programmable Logic Controller,24DI 24DO PLC Programmable Logic Controller,PLC Servo Motor Controller |
||
Product Description
Coolmay CX3G-48M PLC Programmable Logic Controller 24DI 24DO Servo Motor Controller
- PLC controller*1
- PLC programming cable*1
Features
- Highly integration. At most 24DI/24DO (transistor output,or relay output or mixed output), 8AI/4AO (Optional)
- Comes with 2 PLC programming ports: Mini typeB usb port (speed of reading and downloading is more faster)
- and RS 232 (8-hole mouse head female seat), normally have 2 RS 485 ports.
- Support multi-channels high-speed counting and high-speed pulse.
- Support special encryption ((Attention:Only supports 8-bit password encryption)
- 32K steps of program capacity, 32K power-failed holding registers which support interrupting, linear arc interpolation and PID auto-tuning.
- The network module can be selected according to customer requirements to realize remote control.
Specification
| Model | CX3G-48M |
Dimension | 200*90*36mm |
Cutout size | 192*99mm |
Installation | Fixed hole installation and DIN-Rail (35mm ) |
I/O level | Input: Passive NPN, public terminal isolated Transistor output: NPN Relay output: Normally open dry contact |
Digital I/O | 24DI/24DO |
DO type | Relay(MR) or transistor(MT) or mixed(MRT) (Relay output: max load 5A/ transistor output: max load 500mA) |
High speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz |
High speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz High-speed counting + high-speed pulse < 480KHz |
Analog I/O (optional) | 12AI/8AO |
AI type (optional) | Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0-20mA/ 4-20mA/ -5V~5V/ -10V~10V |
AO type (optional) | 0~10V/ 0-~5V/ 0~20mA/ 4~20mA -5~5V/ -10~10V (2DA for 1 minus voltage) |
Default | 1 Mini type B USB programming port, 1 RS232 programming port (Interface terminal is mouse female port with 8 holes), 2 RS485 COM ports |
Optional | Default 2 RS485 COM ports can be customized as 1 RS485, 1 RS232 COM ports, or 1 RS485 COM port, 1 CAN (2.0A/B), or 1 RS232 COM port, 1 CAN (2.0A/B) CX3G-48M can add Ethernet port. |
Software | Compatible with WORKS 2 |
Purchase Note
- It is Suggested to use WORKS 2 For CX3G PLC, which it is better compatible.
- ODM and OEM are support if order can be reach request quantity.
- More details you can offer as DI/DO,AI/AO, high speed requirements, com ports...... ,it will be more fast to decide final model.
- If you need special cable, please advise.
