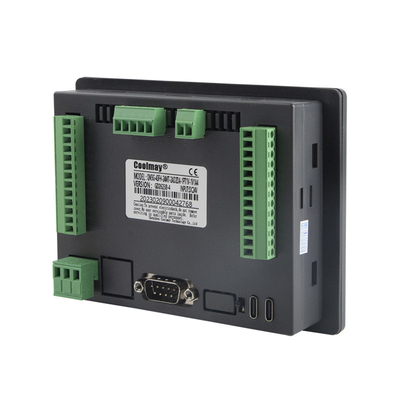

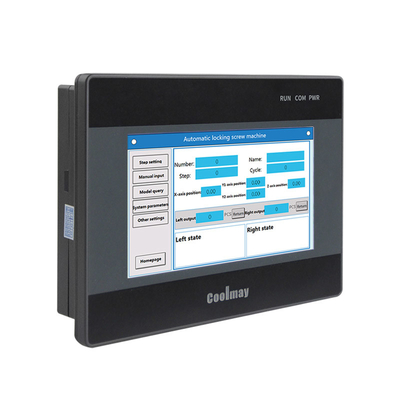

Coolmay EX3G-8043FH-24M Industrial Automation Fx Fx1n Fx2n Fx3u 24mt Motor Speed Plc Programmable Logic Controller
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Integrated PLC HMI | Dimension | 134x102x34mm |
|---|---|---|---|
| Resolution | 480x272 | Contrast Ratio | 400:1 |
| Touch Type | 4 Wire Resistive Panel | Consumption | 72mA/24V |
| Digital | 16 | Com Port | RS232,RS485 |
| Highlight | Industrial Automation Plc Programmable Logic Controller,Coolmay Plc Programmable Logic Controller,Motor Speed Plc Programmable Logic Controller |
||
Product Description
Industrial Automation Fx Fx1n Fx2n Fx3u 24mt Motor Speed Plc Programmable Logic Controller
| Coolmay's HMI PLC All-in-one Advantages | ||||
| Digital | Min 12DI12DO to Max 30DI30DO | |||
| Digital Outputs Type | Relay or Transistor(or these two mixed outputs) | |||
| Analog(Optional) | Min 4AI2AO to Max 16AI8AO | |||
| High Speed Pulse and Counting |
6 channels inputs, 8 channels outputs(only for Transistor output type) |
|||
| Software | Compatible Works 2 and Developer8.86 | |||
Specification:
4.3 inch 12digital input 12 digital output rs485 modbus hmi + plc controller
Different size available :
4.3 inch, 5 inch, 7 inch, 10 inch.
Features:
- Integrated PLC,HMl,digital I/O(DW/DO), analog I/O(AD/DA), high speed functions,etc..
- Compatible with FX3G/FX3U/FX3S PLC,fast operation.
- Default 2 PLC programming ports, 1 HMl download port.
- Supports optional one or two Rs485, CAN, WIFl, network port on PLC, and supports optional Rs232,Rs485,network port (under development)on HMI.
- Supports multi-channel high speed count and pulse functions.
- 32K-step program capacity and 32Kpower retentive registers.Supports interruption, linear arc interpolation and PID self-tuning.
- Supports special encryption.HMl and PLC can be encrypted respectively.Set PLC password as 12345678 can prohibit reading program completely.(Note:PLC only supports 8-bit password.)
- Combined with Coolmay network modules can realize remotely control.
| Model | EX3G-8043FH-24M |
| HMI Part | |
| Cutout size | 120*94mm |
| Display | 4.3" TFT |
| Resolution | 480*272 |
| Brightness | 400cd/m² |
| Protect | IP65 |
| Backlight time | 60,000 hours |
| Display color | 65536 colors |
| ROM | NOR Flash 128MB |
| RAM | 128MB |
| CPU | Dual-core 1GHz |
| Download port | Type-C |
| COM port | 1 RS232 |
| PLC Part | |
| Digital Input | 8 |
| Digital Output | 8 |
| IO Level | NPN |
| Analog Input | 4 (Optional) |
| Analog Output | 2 (Optional) |
| Com Port |
1 TYPE-C, 1 RS232 |
|
Optional COM port |
1 RS485 or 2 RS485 COM ports (one of which is changed from the default RS232 port); 1 WIFI (occupy default RS232 port) |
| Temperature | Ambient environment: 0~50℃ | Storage environment: -20~70℃ |
| Humidity | 20%~90% RH |
| Language | Almost all |
