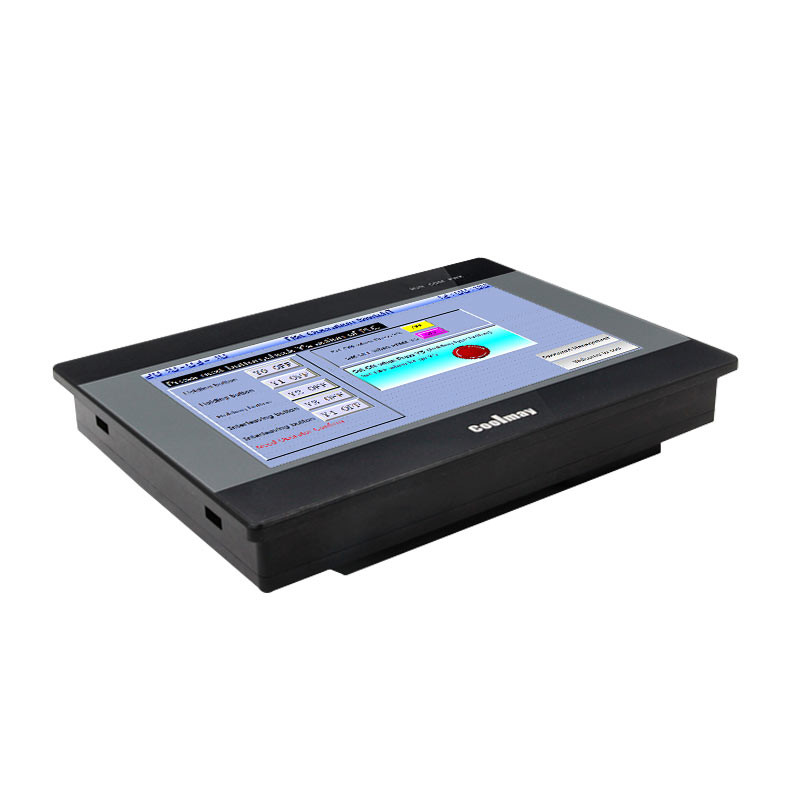

Coolmay 7 Inch HMI PLC All In One Programmable Logic Controller Screen
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| HMI Software | Coolmay VCOOL | CPU | Dual-core 1GHz |
|---|---|---|---|
| ROM | 128MB | PLC Software | Compatible With GX Developer8.86 And GX WORKS 2 |
| Highlight | Programmable Logic Controller Screen,Coolmay HMI PLC All In One,7 Inch HMI PLC All In One |
||
Product Description
7 INCH HMI PLC ALL IN ONE PROGRAMMABLE LOGIC CONTROLLER TOUCH SCREEN
The all-in-one solution is to integrate the controller, operation interface, input/output, analog input/output, high-speed counting/pulse and communication port into a compact unit to meet the needs of customer equipment automation control.
PRODUCT DESCRIPTION of HMI PLC ALL IN ONE
Feature:
1. Super functions.PLC compatible with FX3G/FX3U/FX3S PLC.It operate fast.

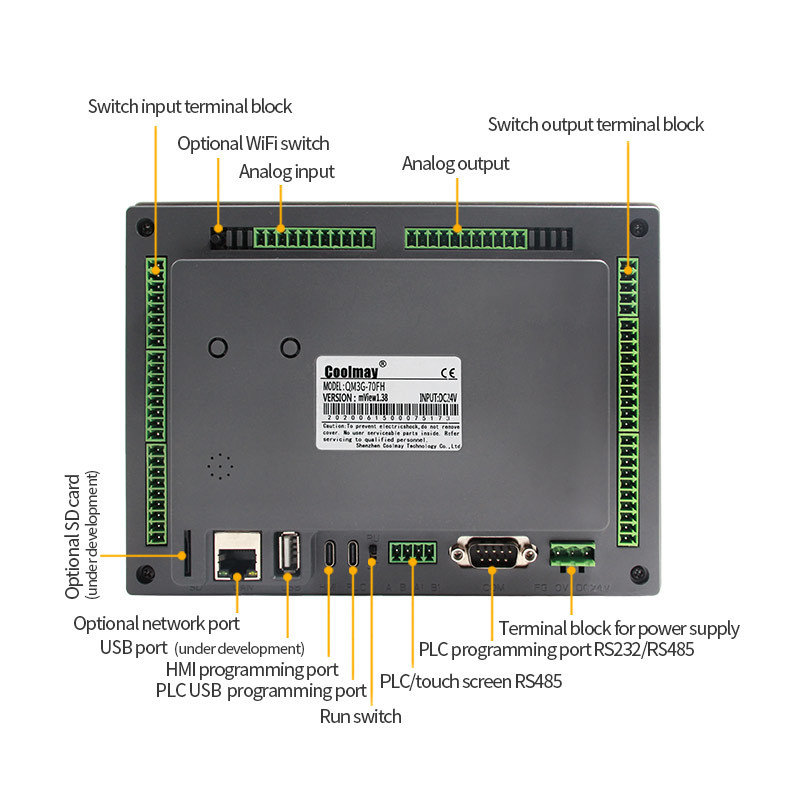

2.Highly integration.The digital points are 30 inputs and 30 outputs at most.The digital output can be transistor,relay or mixed output.Analog can reach up to 16 input and 8output.It has 2PLCCOM port(Rs232and USB Port).1 downloading port on HMI
3. Support several high-speed counting and high-speed pulse.Acceleration and deceleration are independent.The total high-speed counting and pulse can not exceed 480KHz
4.32K steps program capacity.32K power-off retentive registers.support interrupt.linear and circular interpolation.PID self-adjusting
5. Special encrvotion.Set password as 12345678 to thorouahly prevent readina dataPLC only supporls 8-bit password encryotion
-
-
Model EX3G-8070H Dimension 226*163*35.6mm Cutout size 217*154mm Power
Consumption
6-7W HMI Feature 60K-color resistive touch screen, supports portrait display Type 7"TFT COM port Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port PLC High-speed
counting
Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,
or 2 ABZ 60KHz + 1 AB phase 10 KHz
High-speed pulse 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.
High-speed counting + high-speed pulse < 480KHz
Default
programming port
1x TYPE-C, 1x RS232, 1x RS485 AI type (optional) Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/
0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed
AO type (optional) 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/
-5~5V/ -10~10V (2AO for 1 minus voltage)
Maintenance and service
- Your products will be 18-month warranty excluding artificial damage.
- You would receive unlimited support via video, phone or email.
- OEM/ODM is supported, MOQ is 200 sets. More modules or functions can be customized as per your requirements.
RFQ:
Q: Do you provide a cargo warranty?
Yes, we provide warranty on all goods.
Q: Can Coolmay provide technical support?
A: We have been in this field for more than 12 years. If you have any questions, please contact us and we will provide advice from our engineers to help you solve the problem.
Q: Does Coolmay keep inventory or trade only?
A:We have a large number of warehouses. Keep a large amount of goods in the warehouse to ensure fast delivery.
A:We have a large number of warehouses. Keep a large amount of goods in the warehouse to ensure fast delivery.
Q: What is your MOQ?
A: We provide you with a small order quantity for each item, depending on your specific order!
A: We provide you with a small order quantity for each item, depending on your specific order!
