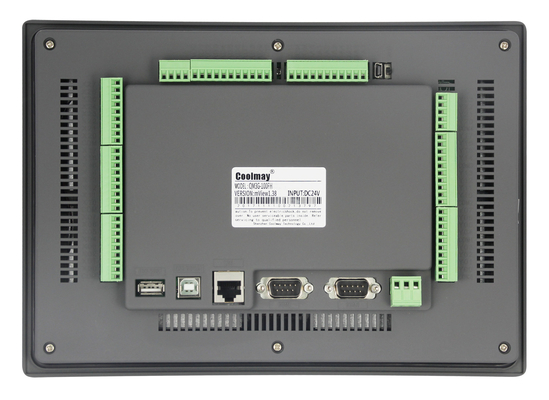

Coolmay 10 Inch Relay Digital Input Analog Temperature Humidity Fx1n Fx2n Fx3u Plc HMI Integrated Combo All In One Programmable Logic Compressor 8 Axis Stepper Servo Driver Speed Controller
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Input | 24V DC | COM Port | 1x Mini USB, 1x RS232, 1x RS485 |
|---|---|---|---|
| Dimension | 275*194*36 Mm | RAM | 256MB FLASH |
| Highlight | Coolmay 10 Inch Relay Digital Input |
||
Product Description
Coolmay Relay Digital Input Analog Temperature Humidity Fx1n Fx2n Fx3u Plc HMI Integrated Combo All In One Compressor 8 Axis Driver Speed Controller
The all-in-one solution is to integrate the controller, operation interface, input/output, analog input/output, high-speed counting/pulse and communication port into a compact unit to meet the needs of customer equipment automation control.
PRODUCT DESCRIPTION of HMI PLC ALL IN ONE
Feature:
1. Super functions.PLC compatible with FX3G/FX3U/FX3S PLC.It operate fast.
2. Highly integration.The digital points are 30 inputs and 30 outputs at most.The digital output can be transistor,relay or mixed output.Analog can reach up to 16 input and 8output.It has 2PLCCOM port(Rs232and USB Port).1 downloading port on HMI
3. Support several high-speed counting and high-speed pulse.Acceleration and deceleration are independent.The total high-speed counting and pulse can not exceed 480KHz
4.32K steps program capacity.32K power-off retentive registers.support interrupt.linear and circular interpolation.PID self-adjusting
| Model | EX3G-8100H |
| Dimension | 275*194*36mm |
| Cutout size | 262*180mm |
| Input | 24VDC |
| Power Consumption | 6-8W |
| HMI | |
| Feature | 60K colors resistive touch screen, supports portrait display |
| Type | 10.1"TFT |
| Display size | 222*125mm |
| Resolution(pixels) | 1024*600 |
| RAM | 64MB (Please inquire if requires storing historical data) |
| ROM | 256MB |
| CPU | CPU Dual-core 1GHz |
| COM ports | Type-B HMI download port (can download PLC program through the USB penetrating function), RS232 |
| Software | Coolmay VCOOL |
| PLC | |
| I/O level |
- Input: Passive NPN, public terminal isolated - Transistor output: Low level NPN, COM connect to negative - Relay output: Normally open dry contact |
| DO type and load |
- MT: 2A/point, 4A/4 points COM; MT: 0.5A/point, 0.8A/4 points COM, 1.6A/8 points COM - MR: 2A/point, 4A/4 points COM, 5A/12 points COM. |
| High-speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10KHz |
|
High-speed pulse (Only for MT models) |
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz |
| COM port | 1x mini USB, 1x RS232, 1x RS485 |
| Software | Compatible with GX Developer8.86 and GX WORKS 2 |
| Detailed info. refer to: “Coolmay EX3G-80 All-in-One User Manual”, “Coolmay CX3G/FX3GC PLC Programming Manual”, “Coolmay TP HMI User Manual” | |
Packaging & Shipping
- Packaging
The products will be under testing for 1-3 days and packed with carton box .
FAQ
1. Q: How about the warranty ?
A: We provide 12 months warranty for all the goods from us , and you can refund the goods with any quality problem in 15 days.
2. Q: How soon can I get my goods after I pay for the order?
A: We have the professional production line. It is about 1-2 weeks after you make the order. Certainly we could also arrange it first if you have urgent order.
3. Q: Are you a manufacturer or trade company?
A: We are both factory and trae company, we have engineers for study & design and workers for producing and operating etc. We could support you one-stop products and service.
4. Q: What about delivery ?
A: We have DHL/FEDEX/EMS/UPS forwarder with competitive price if you dont't have freight forwarder.
5. Q: Do you have a CE certificate?
A: Yes, for the products we exported, we could offer the CE for your customs.
