Industrial Cnc Touch Screen Panel Plc HMI Integrated Combo Combined All In One Programmable Logic Stepper Servo Driver Brushless Pwm Dual Motor Speed Controller Unit Module Ethernet Made In China
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimension | 134*102*32mm | Resolution | 480*272 Pixels |
|---|---|---|---|
| ROM | 128MB | CPU | Dual-core 1GHz |
| DI/DO | 12DI/12DO | Analog I/O | (optional) Max 4AI/2AO |
| HMI Port | RS232 Port | PLC Port | Mini Type B USB Port |
| Highlight | Touch Screen Plc HMI Integrated Combo,Industrial Cnc Plc HMI Integrated Combo,Integrated HMI PLC All In One |
||
Product Description

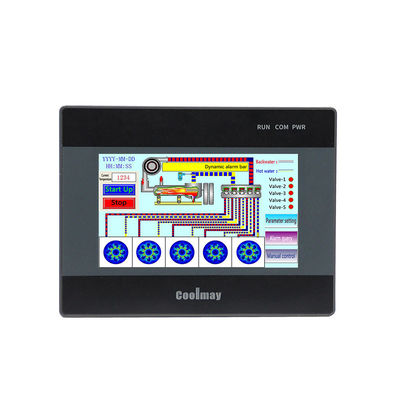

Industrial Cnc Touch Screen Panel Plc HMI Integrated Combo Combined All In One Programmable Logic Controller
Advantage:
◆ Upper computer programming software compatible with Works 2/GX Developer8.86 (supports Ladder diagram and SFC language, does not support structured programming/labels).
◆ Military level 32 bit CPU adopted, which is faster and more adapted to industrial environment of high electromagnetic interference.
◆ Clock supported, rechargeable battery adopted.
◆ Support Mitsubishi programming port protocol/Modbus protocol/Rs protocol/BD board protocol,
PLC communication with each other and other devices is easily achieved.
◆ High speed counter.regularly single phase 6 channels 60KHz/ AB(Z) Phase 2 channels 60KHz + AB phase 1 channel 10KHz.
◆ Support multiple types analog individually or mixed ones for analog output and input.
◆ Convenient for wiring, adopting 3.81mm pluggable terminals.
◆ Easy installation. DIN-Rail (35mm width) installation and fixed hole installation.Flexible, can be customized accordingly.
◆ PLC Software is compatible to Mitsubishi, HMI use Coolmay programming software.
Parameter:
|
Display |
Dimension |
134*102*32mm |
|
Resolution |
480*272 pixels |
|
|
Type |
4.3” TFT |
|
|
Features |
Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register |
|
|
Memory |
RAM |
128MB |
|
ROM |
128MB |
|
|
CPU |
Dual-core 1GHz |
|
|
I/O |
DI/DO |
12DI/12DO |
|
Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact |
||
|
DO type and load |
Relay MR/MOS tube, MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM; MR: 2A/point, 5A/12 point COM. |
|
|
Analog I/O (optional) |
Max 4AI/2AO |
|
|
AI type (optional) |
Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple/ PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed |
|
|
AO type (optional) |
0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed |
|
|
High-speed function |
High-speed counting |
6 channels single-phase 60KHz, or 2 channels AB (Z) phase 60KHz + 1 channel AB phase 10KHz |
|
High-speed pulse |
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz High-speed counting + high-speed pulse < 480KHz |
|
|
Connection |
HMI |
1 HMI download port |
|
1 RS232 port |
||
|
PLC |
1 Mini type B USB port, 1 RS232 port (Program port,also can be used as COM port) |
|
|
1 RS485 or 2 RS485 COM ports (one is changed from the default RS232 port) |
||
|
Software |
HMI |
CoolMay vcool |
|
PLC |
Compatible with Mitsubishi GX Developer8.86 and GX WORKS 2 |
PLC Programming notice
The PLC is compatible with GX 8.86/Works 2 and below. If you use other versions of the software, incompatibility may occur.
When the PLC program is downloaded, there is a prompt error: Cannot specify the com port,
GX 8.86 software: Online - Transfer settings change com port;
Works 2: All targets - Change the com port in all connected targets;
If communication error occurs, cable is abnormal If prompted, remove it by powering off, detecting the cable, detecting whether the power is normal, or replacing the computer.
In the Works 2 software version, choose the figure : (Note: the label is forbidden)

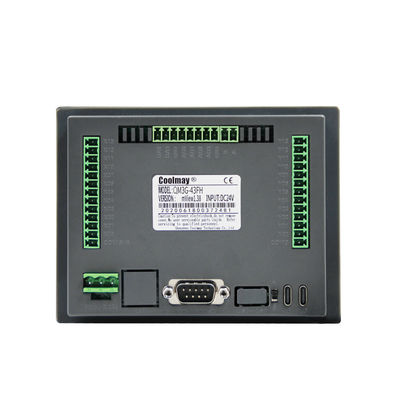

Introduction of each interface and indicator:
POWER: Power indicator, connected to the power light
RUN: PLC running status indicator. This light is on when the PLC is running.
COM: touch screen and PLC communication status indicator, when the two communicate, the light is on
Power terminal: The positive and negative terminals of the DC24V switching power supply are respectively connected to the DC24V and 0V of the power supply terminal.
PLC programming port: two PLC programming ports (MiniB type usb port / RS232), PLC program can be downloaded through 232 programming line or USB cable download
Touch screen programming port: download touch screen configuration program
USB interface: mainly can be directly inserted into the U disk of the file system FAT 32, can also be inserted into the mouse.
