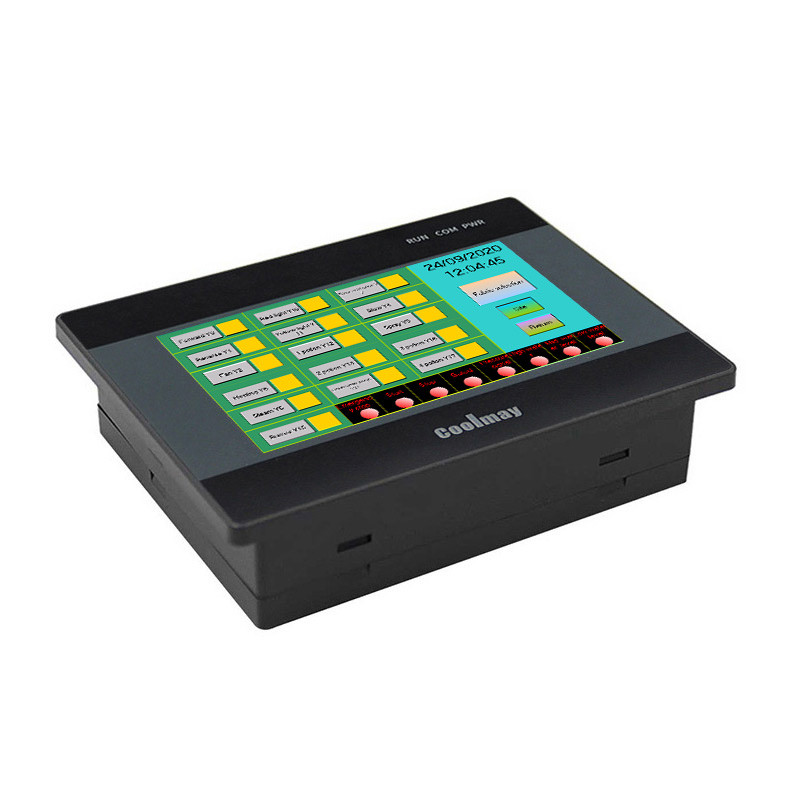

Industrial Plc HMI All In One Programmable Logic Controller Ethernet 1
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimension | 134*102*32mm | Resolution | 480*272 Pixels |
|---|---|---|---|
| ROM | 128MB | CPU | Dual-core 1GHz |
| DI/DO | 12DI/12DO | Analog I/O | (optional) Max 4AI/2AO |
| HMI Port | RS232 Port | PLC Port | Mini Type B USB Port |
| Highlight | All In One Plc HMI,Industrial Plc HMI,Ethernet Plc HMI |
||
Product Description
Industrial
Advantage:
◆ Upper computer programming software compatible with Works 2/GX Developer8.86 (supports Ladder diagram and SFC language, does not support structured programming/labels).
◆ Military level 32 bit CPU adopted, which is faster and more adapted to industrial environment of high electromagnetic interference.
◆ Clock supported, rechargeable battery adopted.
◆ Support Mitsubishi programming port protocol/Modbus protocol/Rs protocol/BD board protocol,
PLC communication with each other and other devices is easily achieved.
◆ High speed counter.regularly single phase 6 channels 60KHz/ AB(Z) Phase 2 channels 60KHz + AB phase 1 channel 10KHz.
◆ Support multiple types analog individually or mixed ones for analog output and input.
◆ Convenient for wiring, adopting 3.81mm pluggable terminals.
◆ Easy installation. DIN-Rail (35mm width) installation and fixed hole installation.Flexible, can be customized accordingly.
◆ PLC Software is compatible to Mitsubishi, HMI use Coolmay programming software.
Parameter:
|
Display |
Dimension |
134*102*32mm |
|
Resolution |
480*272 pixels |
|
|
Type |
4.3” TFT |
|
|
Features |
Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register |
|
|
Memory |
RAM |
128MB |
|
ROM |
128MB |
|
|
CPU |
Dual-core 1GHz |
|
|
I/O |
DI/DO |
12DI/12DO |
|
Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact |
||
|
DO type and load |
Relay MR/MOS tube, MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM; MR: 2A/point, 5A/12 point COM. |
|
|
Analog I/O (optional) |
Max 4AI/2AO |
|
|
AI type (optional) |
Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple/ PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed |
|
|
AO type (optional) |
0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed |
|
|
High-speed function |
High-speed counting |
6 channels single-phase 60KHz, or 2 channels AB (Z) phase 60KHz + 1 channel AB phase 10KHz |
|
High-speed pulse |
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz High-speed counting + high-speed pulse < 480KHz |
|
|
Connection |
HMI |
1 HMI download port |
|
1 RS232 port |
||
|
PLC |
1 Mini type B USB port, 1 RS232 port (Program port,also can be used as COM port) |
|
|
1 RS485 or 2 RS485 COM ports (one is changed from the default RS232 port) |
||
|
Software |
HMI |
CoolMay vcool |
|
PLC |
Compatible with Mitsubishi GX Developer8.86 and GX WORKS 2 |
PLC Programming notice
The PLC is compatible with GX 8.86/Works 2 and below. If you use other versions of the software, incompatibility may occur.
When the PLC program is downloaded, there is a prompt error: Cannot specify the com port,
GX 8.86 software: Online - Transfer settings change com port;
Works 2: All targets - Change the com port in all connected targets;
If communication error occurs, cable is abnormal If prompted, remove it by powering off, detecting the cable, detecting whether the power is normal, or replacing the computer.
In the Works 2 software version, choose the figure : (Note: the label is forbidden)

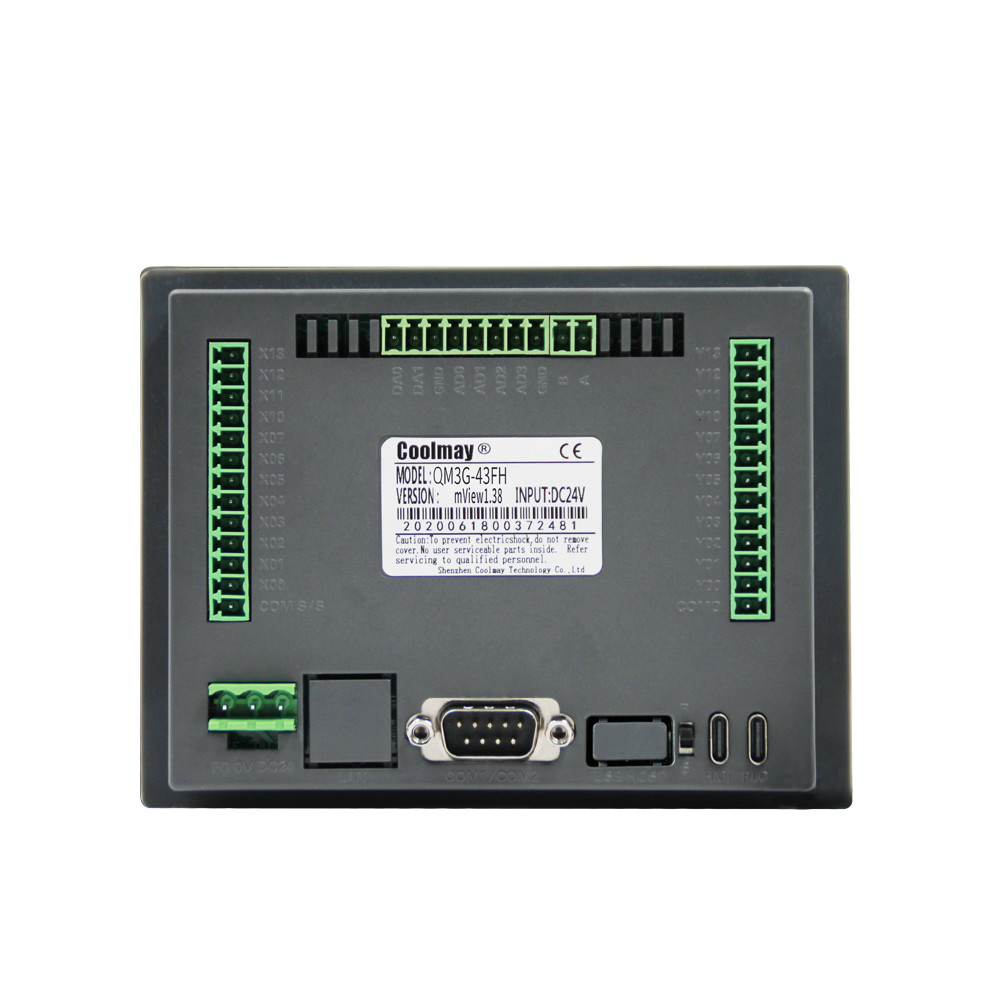

Introduction of each interface and indicator:
POWER: Power indicator, connected to the power light
RUN: PLC running status indicator. This light is on when the PLC is running.
COM: touch screen and PLC communication status indicator, when the two communicate, the light is on
Power terminal: The positive and negative terminals of the DC24V switching power supply are respectively connected to the DC24V and 0V of the power supply terminal.
PLC programming port: two PLC programming ports (MiniB type usb port / RS232), PLC program can be downloaded through 232 programming line or USB cable download
Touch screen programming port: download touch screen configuration program
USB interface: mainly can be directly inserted into the U disk of the file system FAT 32, can also be inserted into the mouse.
