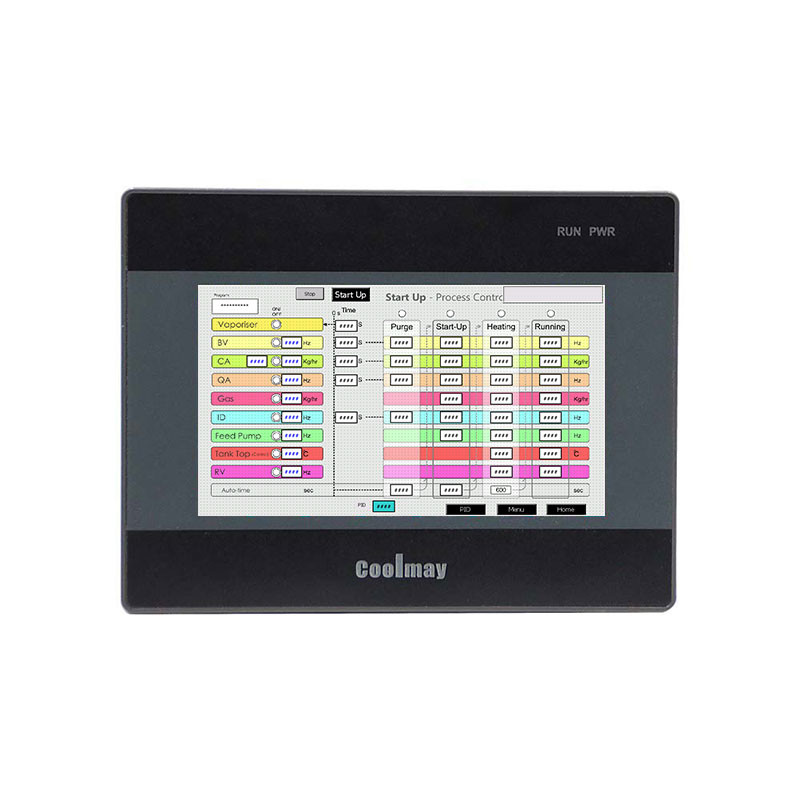

Coolmay 4.3inch HMI Touch Screen TK8043H Modbus TCP/IP HMI Touch Panel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certificate | CE | Display | 4.3"TFT |
|---|---|---|---|
| Contrast Ratio | 400:1 | CPU | 1GHz |
| Consumption | 72mA/24V | Weight(kg) | Appox. 0.33 Kg |
| Resolution | 480*272 |
Product Description
4.3inch HMI Touch Screen Modbus TCP/IP HMI Touch Panel
The packagewill include
* 1 set of device (grey color) and cable(Type-C cable as default)
* Software and manuals are free of charge. They are available on our website or please contact our sales team for download links.
Note:
(1) The device includes functions below
-
4.3 inch color touchscreen
-
RS232, RS485 port
-
Support modbus, free port and common PLC communication protocol
(2) 1 set of cables is free of charge. Please order in our store for additional cables.
Specifications of TK8043H
| Dimension | 134*102*36mm |
| Cutout size | 120*94mm |
| Display size | 97*56mm |
| Weight | Appox. 0.33 kg |
| Display | 4.3" TFT |
| Resolution | 480*272 pixels |
| Brightness | 400 cd/m² |
| Contrast ratio | 400:01:00 |
| Backlight | LED |
| Backlight time | 60,000 hours |
| Display color | 65536 colors |
| Touch type | 4-wire resistive panel |
| ROM | 128MB |
| RAM | NOR Flash 128MB |
| CPU | 1GHz |

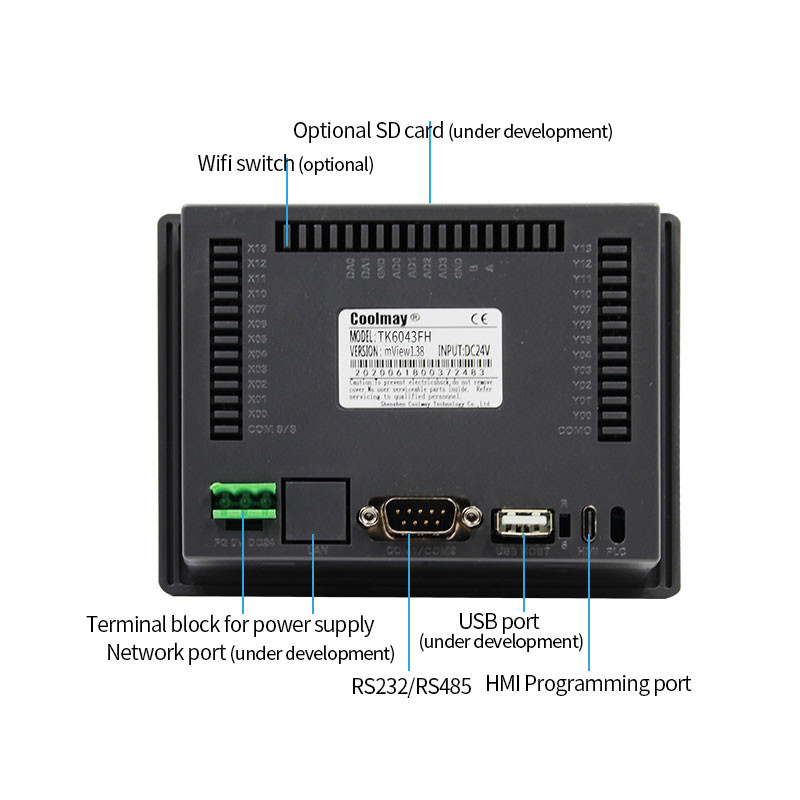

| Download port | Type-C, RS232, RS485 |
| COM port | 1 RS232, 1 RS485 |
| Optional | 1 WIFI (occupy default RS485 port) |
| Protocol | Support MODBUS, free port and common PLC communication Protocol |
| Calendar | Yes |
| Input Voltage | 12-24VDC±10%<150mA @ 24VDC |
| Consumption | 72mA/24V |
| Protection Class | IP65 (front panel) |
| Temperature | Ambient environment: 0～50℃ Storage environment: -20～70℃ |
| Humidity | 20%～90% RH |
| Certification | CE |
| Software | CoolMay vCool programming software |
FAQ:
Q: Do you provide a cargo warranty?
Yes, we provide warranty on all goods.
Q: Can Coolmay provide technical support?
A: We have been in this field for more than 12 years. If you have any questions, please contact us and we will provide advice from our engineers to help you solve the problem.
Q: Does Coolmay keep inventory or trade only?
We have a large number of warehouses. Keep a large amount of goods in the warehouse to ensure fast delivery.
Q: What is your MOQ?
A: We provide you with a small order quantity for each item, depending on your specific order!
Q: How do you make a long-term relationship with our business?
1. We maintain good quality and competitive prices to ensure the interests of our customers;
2. We respect every customer as our friend, we do business in good faith, and make friends with them, no matter where they come from.
