1. Advanced PLC control (can be encrypted thoroughly, protect intellectual property), good stability, high reliability, high cost
performance
Touch screen operation, simple and convenient operation (parameter setting, abnormal detection, function display)
2. Automatic counting, can be installed with force display, can be customized according to customer requirements
3. It can punch various profiles such as round tube, square tube, angle iron, channel steel, etc.
4. With servo, stable performance, long life, fast speed, high positioning accuracy, high speed mute, energy saving and
environmental protection, power saving 60%
5. Compared with other solutions, the speed and pressure can be adjusted and controlled, the output adjustment range is large, the
independence is strong, the performance is more stable, and the product's press-fit quality can be greatly improved.
All Products
-
Juan Guevaramuy buen trato con el vendedor y muy buena asesoria y el producto está trabajando muy bien ya tiene un año y no he tenido ningún problema -
Obert MatetakufaI'm very happy with the business deal and all the support they are giving . A very good business partner
Contact Person :
Sandra
Phone Number :
008619925291353
Whatsapp :
+8619925291353
7 Inch Modbus Hmi Plc All In One Plc Programmable Controller 24digital Input 24digital Output
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Consumption | 6-7w | Cutout Size | 192*138mm |
|---|---|---|---|
| Feature | 65536 True Color | Display Size | 154*87mm |
| Digital | 24/24 | I/O Level | NPN |
| Power | DC24V | Analog | Up To 12ai/8ao Optional |
Product Description

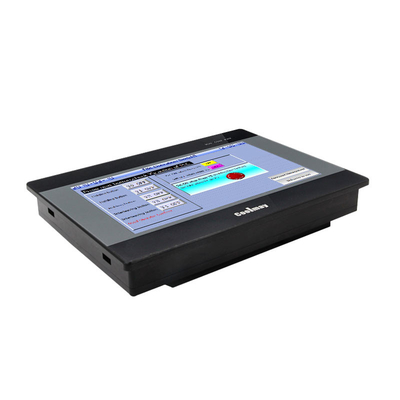

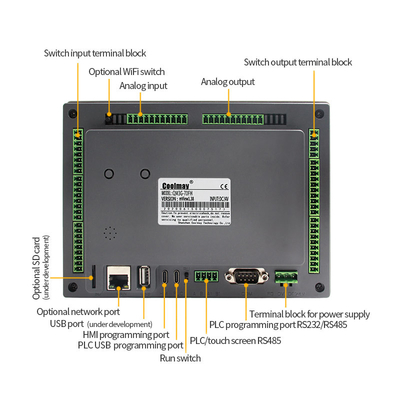

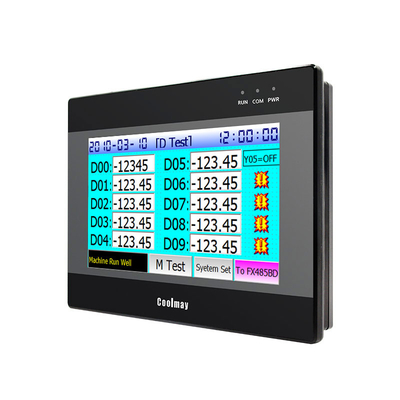

7 Inch Modbus Hmi Plc All In One Plc Programmable Controller 24digital Input 24digital Output
| Model | EX3G-8070H |
| Display | 7Inch |
| Resolution | 800*480pixels |
| RAM | 128MB |
| ROM | 128MB |
| CPU | 1GHz |
| I/O | 24/24 |
| High-speed counting |
Single phase 6 channel 60KHz |
| High-speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. |
| Analog | Optional : up to 4AI/2AO |
| Programming port | 1 TYPE-C, 1 RS232 , 1 RS485 |
| Software | HMI : VCOOL
PLC: GX Works2
|
China first original manufacturer to make human machine interface and programmable plc controller integrated!
HMI is built in with plc digital,analog and hsc,hsp,pwm etc controller features together.
We have different size in stock, 4.3 inch, 5 inch, 7 inch, 10 inch.
Application for Hydraulic press punching machine.
